    Full Automatic Liquid Polymer Preparator Dosing System For Water Treatment

    Ask Lasest Price
    Brand Name : HOLLY
    Model Number : HLJY
    Certification : CE, ISO9001
    Price : USD 6000-90000 Per Set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10 Sets Per month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    Full Automatic Liquid Polymer Preparator Dosing System For Water Treatment


    Introduction

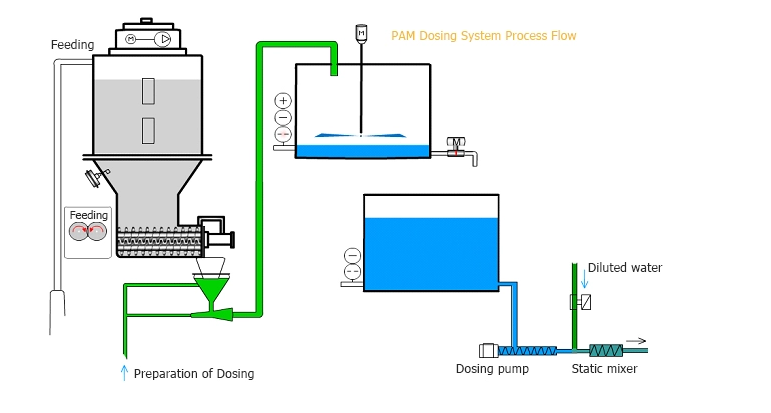

    The flocculant is often called polymer or poly-electrolyte.Flocculant poly-electrolyte must be prepared from a powder polymer or a fluid concentrated polymer.Polymer is a product that must be well mixed with water to prevent clot formation. After mixing with water a certain maturation time is necessary to "unfold" the polymer chain.Flocculant needs to "mature" about 30 to 60 minutes before it can be dosed.Matured polymer is a sticky liquid.For larger installations we recommend automatic polymer dosing systems for both powder and liquid polymer applications.An automatic polymer dosing systems consists mostly of three compartments with a dosing screw and a powder storage.In the first area the powder is mixed with water. The ratio water powder can be set-up perfectly.The second area is a maturation tank with stirrer .From the third area the matured polymer is pumped into the flocculator. A level probe mounted in an acrylic holder controls the make-up station.The dosing screw at the bottom of the powder storage is provided with a heating element to prevent condensation.In a polymer make up station of liquid polymer, the entire powderbuffer and dosing screw is replaced by a polymer dosing pump.


    Specifications:


    Solution Preparation Amount Q(L/h)

    500


    1000


    1500


    2000


    3000


    4000

    Dimension(B*L*H)900*1500*16501000*1625*17501000*2440*18001220*2440*18001220*3200*20001450*3200*2000
    Powder Conveyor Power N(KW)

    0.37


    0.37


    0.37


    0.37


    0.37


    0.37


    Agitator

    Paddle Diaφ(mm)200200300300400400
    Spindle speed n(r/min)120120120120120120
    Power N(KW)0.2*20.2*20.37*20.37*20.37*20.37*2
    Dosing Screw PumpFlow N(KW)0.512234
    Lift(m)101015151515
    Power N (KW)0.750.751.11.12.22.2
    Inlet pipe Dia DN1(mm)252532325050
    Outlet Pipe Dia DN2(mm)252525254040


    Applications:


    Pulp and paper


    Food Processing


    Chemical Processing


    Textiles


    Municipal

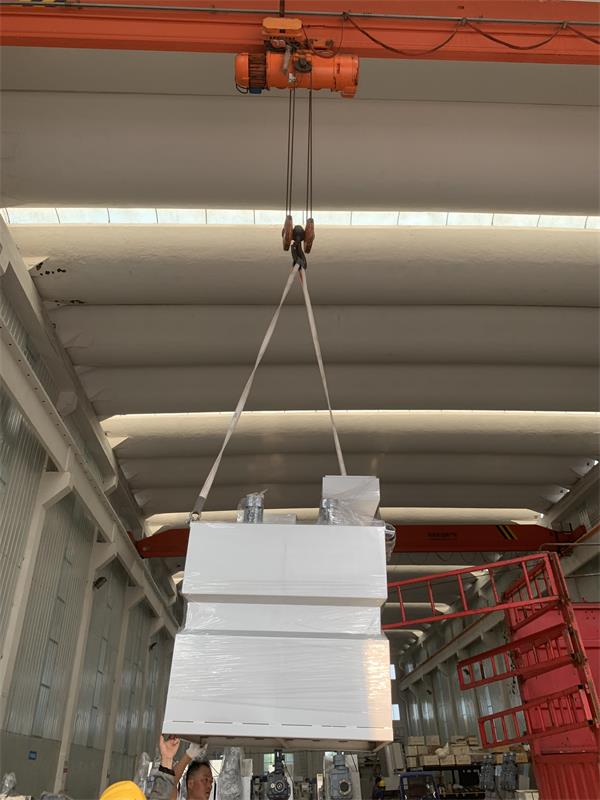

    Packing news:
