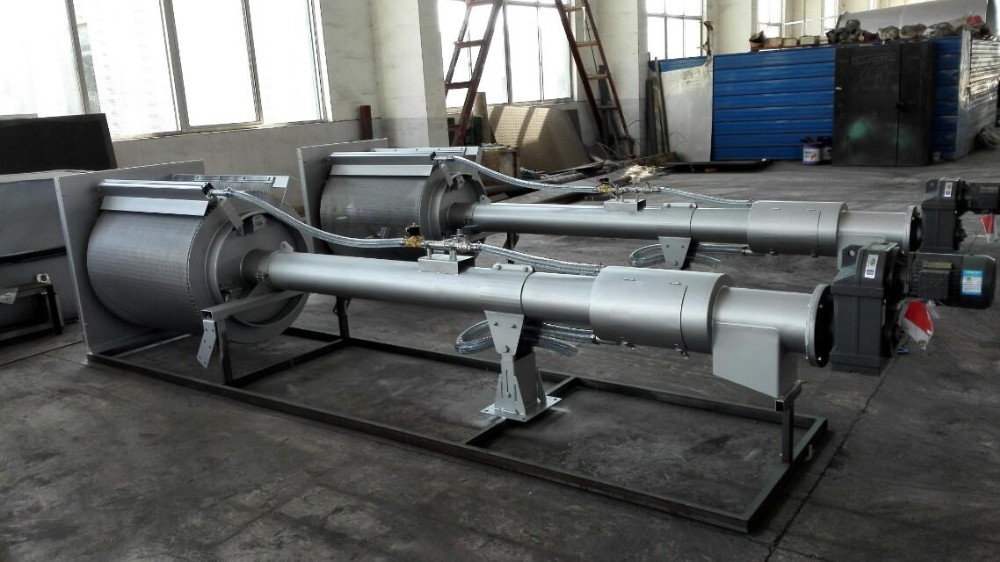

High quality Wastewater Treatment Rotary Drum Screen is a reliable and well proven inlet

screen for municipal sewage treatment plants, industrial wastewater and process water

screening. Its operation is based upon a unque system that also allows a combination of

screening, washing, transport,compaction and dewatering in a single unit.

The screening elements can be either wedge wire spaced at 0.5-6mm, or 1-6mm perforated

drums. Depending on the aperture size selected and the screen diameter(screen basket

diameter of up to 3000mm are available), the throughput can be individually adjusted to

specific site requirements.

The Rotary Drum Screen is completely made of stainless steel and can be installed either

directly in the channel or in a separate tank.

Features:

1. Little hydraulic loss, high efficiency, and large processing capacity.

2. Whole stainless steel structure, convenient in maintenance and long service life.

3. The working device of the equipment can clean the equipment by itself.

4. A system with more functions, and structure compact.

Municipal Sewage treatment

Papermaking wastewater

Water Treatment Plant

Leather industry

Beverage industry

Slaughterhouse

Pharmaceutical wastewater

Food industry

Petrochemical industry

Textile industry

Technical parameters
