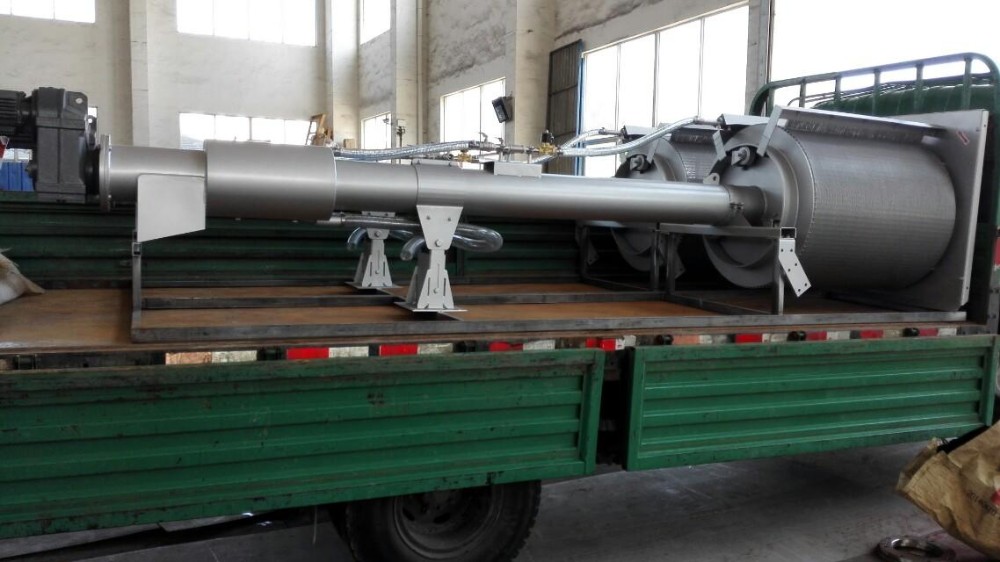

Solid-Liquid Separator Stainless Steel Rotary Drum Screen For Sewage

Product Description

Rotary Drum Screen is widely applied for wastewater treatment projects such as municipal,

industry wastewater, food & beveage process industry, paper industry and so on. This

equipment can clean scum, short fiber, and suspended matter from the water intake, and then

discharge them before dewatering. It can be used for wastewater treatment engineering such

as high precision process, small grid gap and low depth of channel.

Features:

1. Little hydraulic loss, high efficiency, and large processing capacity.

2. Whole stainless steel structure, convenient in maintenance and long service life.

3. The working device of the equipment can clean the equipment by itself.

4. A system with more functions, and structure compact.

Application

Municipal Sewage treatment

Papermaking wastewater

Water Treatment Plant

Leather industry

Beverage industry

Slaughterhouse

Pharmaceutical wastewater

Food industry

Petrochemical industry

Textile industry

Technical parameters

Model			600	800	1000	1200	1400	1600	1800	2000
Drum Diameter(mm)			600	800	1000	1200	1400	1600	1800	2000
Drum Length I(mm)			500	620	700	800	1000	1150	1250	1350
Transport Tube d(mm)			219	273	273	300	300	300	360	500
Channel Width b (mm)			650	850	1050	1250	1450	1650	1850	2070
Max Water Depth H4 (mm)			350	150	540	620	750	860	960	1050
Installation Angle			35°
Channel Depth H1(mm)			600-3000
Discharge Height H2(mm)			Customized
H3(mm)			Confirmed by type of reducer
Installation Length A(mm)			A=h*1.43-0.48D
Total Length L (mm)			L=H*1.743-O.75D
Flow rate(m/s)			1.0
Volume (m3/h)	Mesh (mm)	0.5	80	135	235	315	450	585	745	920
		1	125	215	370	505	720	950	1205	1495
		2	190	330	555	765	1095	1440	1830	2260
		3	230	400	680	935	1340	1760	2235	2755
		4	235	430	720	1010	1440	2050	2700	3340
		5	250	465	795	1105	1575	2200	2935	3600
