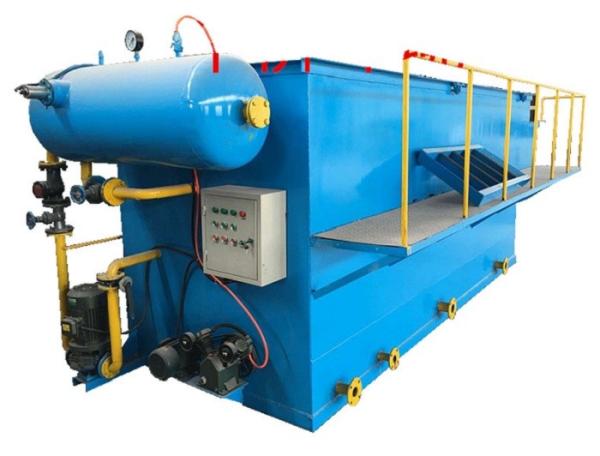

DAF System Flotation Machine With Skimmer Paint For Sewage
Treatment Plant
Dissolved Air flotation Working Priciple:
The sewage treatment pump lift the waste water into the water
warehouse of DAF, and mix
with tiny bubbles of the container, which makes the usspended
matter float to the water
surface, then scraped by the scraping blade plate to the slag tap
outlet;
Heavy particles flow through the inclined plate settling zone,
settling to the bottom of the mud
bucket device, and discharged to the sludge tank through the
pipeline, then do subsequent
processing, and the Clarified purified water will be discharge by
the equipment center tube.
Besides, Our DAF unit designs utilize parallel plate packing
material (e.g. lamellas) to provide
more separation surface, therefore to enhance the separation efficiency of the
machine.
Sewage Treatment Plant For Hospital
Advantage
1. Flow rate of one set: 1-300 m³/h.
2. Recycle flow dissolved air flotation.
3. High efficiency pressurization system providing high quantity
dissolved-air water to create
large quantities of small bubbles.
4. Custom design on different dissolved air flotation equipment and
recycle flow ratio
according to the type of wastewater and treatment requirement to achieve target
removal
effect and stability.
5. Adjustable stainless steel chain type skimmer to suit the
different quantity of sludge.
6. Integrated coagulation tank and or flocculation tank and
cleaning water tank(as optional)is
available to save the space and cost.
7. Automatic and remote controllable.
8. Material of construction: carbon steel epoxy painted, carbon
steel FRP line, stainless steel
SS304/SS316L.
Key DAF features
1. Air dissolving pump and suction water pump suction, pressure in
mixing, dissolving high
efficiency, fine bubbles is less than or equal to 30um.
2. Low pressure operation, dissolved air efficiency of up to 99%,
the release rate of up to 99%.
3. The effective adsorption of micro bubbles and suspended
particles increased the removal efficiency of SS.
4. Dissolved gas water solution efficiency of 80-100%, 3 times
higher than the traditional
dissolved air flotation efficiency.
5. Pressure - volume curve is smooth, easy to realize automatic
control, easy to operate, easy
to maintain, low noise.
Technical parameters
| Model | Capacity(m3/h) | Dissolved Air Water Volume (m3/h) | Main Motor Power(KW) | Scraper Power(KW) | Air Compressor Power(KW) | Dimension (mm) |
| HLDAF-5 | 4-5 | 2 | 3 | 0.55 | 0.75 | 2800*2100*2200 |
| HLDAF-10 | 8-10 | 3.5 | 3 | 0.55 | 0.75 | 3700*2100*2200 |
| HLDAF-15 | 10-15 | 5 | 4 | 0.55 | 1.5 | 4500*2200*2300 |
| HLDAF-20 | 15-20 | 8 | 5.5 | 0.55 | 1.5 | 4650*2400*2300 |
| HLDAF-30 | 20-30 | 10 | 5.5 | 0.75 | 1.5 | 5840*2700*2300 |
| HLDAF-40 | 35-40 | 15 | 7.5 | 0.75 | 1.5 | 6800*2700*2300 |
| HLDAF-50 | 45-50 | 25 | 7.5 | 0.75 | 2.2 | 7500*2900*2300 |
| HLDAF-60 | 55-60 | 25 | 7.5 | 1.1 | 2.2 | 8500*2900*2300 |
| HLDAF-70 | 65-70 | 30 | 15 | 1.1 | 2.2 | 9000*2900*2300 |
| HLDAF-80 | 75-80 | 30 | 15 | 1.1 | 2.2 | 9300*3500*2300 |
| HLDAF-100 | 95-100 | 50 | 15 | 1.1 | 3 | 117500*3750*2300 |
| HLDAF-150 | 140-150 | 50 | 15 | 1.5 | 3 | 12100*3750*2300 |
| HLDAF-200 | 190-200 | 80-100 | 22 | 1.5 | 3 | 12400*3750*2860 |
| HLDAF-250 | 240-250 | 100 | 22 | 1.5 | 3 | 14700*3750*2860 |
| HLDAF-300 | 280-300 | 100 | 22 | 1.5 | 3 | 19100*3750*3150 |
