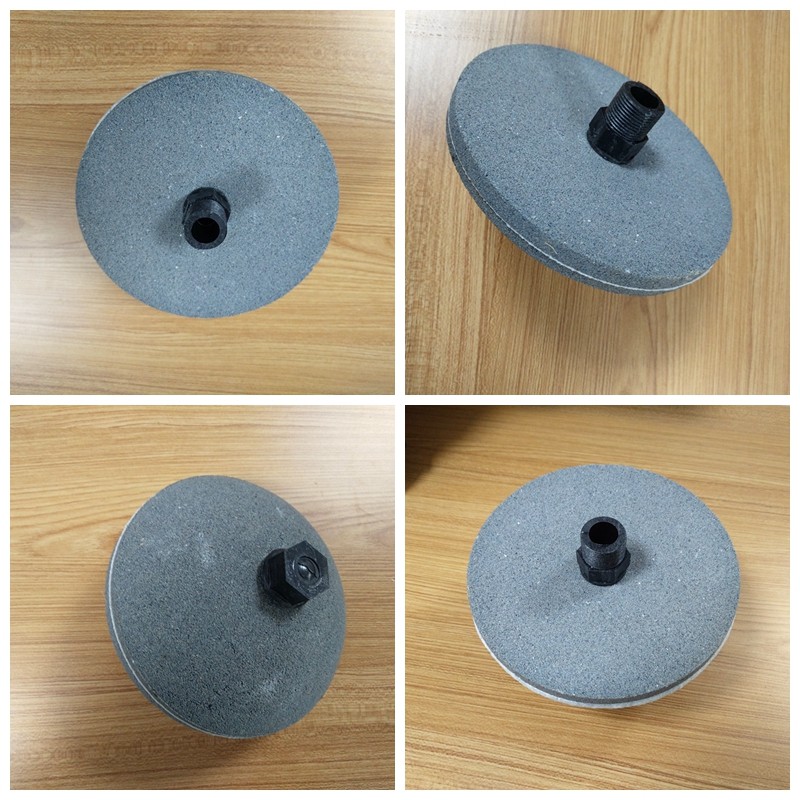

Corrosion resistant Ceramic Disc Fine Bubble Diffuser For Sewage
Treatment
Product Description
The bubble diffusers produce a plethora of very small air bubbles
which rise slowly from the
floor of a wastewater treatment plant or sewage treatment plant
aeration tank and provide
substantial and efficient mass transfer of oxygen to the water. The
oxygen, combined with the
food source, sewage, allows the bacteria to produce enzymes which
help break down the
waste so that it can settle in the secondary clarifiers or be
filtered by membranes.
Features
1. Double check valve, periphery fold sealing structure can prevent
membrane dropping off
from the PP plate.
2. The material of membrane EPDM is imported from France.
3. Unique porous technology makes the disc air diffuser bubble
release evenly, with High
Oxygen Transmission efficiency (OTE)
4. Good effect on saving in power, and low operating cost
5. The membrane has good self-cleaning and anti-clogging property
6. Easy to exclude failure, easy maintance and management
7. Simple structure for easy installation
8. Excellent performance, high efficiency, durable and stable
product quality, save your
money.
Finds Application In :
1. Aeration for SBR reaction basin, contact oxidation pond, and
activated sludge aeration
basin in sewage disposal plant;
2. Aeration for denitrification / dephosphorization aerobic
processes;
3. Aeration for excreta and animal wastewater treatment plant;
4. Aeration of deep aeration basin;
5. Aeration for high concentration wastewater aeration basin, and
aeration for regulating pond
of wastewater treatment plant;
6. Aeration of fishpond and other applications.
Technical Parameters
| Model | HLBQ170 | HLBQ215 | HLBQ260 | HLBQ350 | |
| Bubble Type | Coarse bubble | Fine bubble | Fine bubble | Fine bubble | |
| Size | 6 inch | 8 inch | 9 inch | 12 inch | |
| MOC | EPDM/Silicon membrane
ABS/PP carrier plate | EPDM/Silicon membrane
ABS/PP carrier plate | EPDM/Silicon membrane
ABS/PP carrier plate | EPDM/Silicon membrane
ABS/PP carrier plate | |
| Connector | 3/4'' NPT male thread | 3/4'' NPT male thread | 3/4'' NPT male thread | 3/4'' NPT male thread | |
| Bubble Size | 4-5mm | 1-2mm | 1-2mm | 1-2mm | |
| Design Flow | 1-5m3/h | 1.5-2.5m3/h | 3-4m3/h | 5-6m3/h | |
| Flow Range | 6-9m3/h | 1-6m3/h | 1-8m3/h | 1-12m3/h | |
| SOTE | ≥10%(6m submerged) | ≥38%(6m submerged) | ≥38%(6m submerged) | ≥38%(6m submerged) | |
| SOTR | ≥0.21kg O2/h | ≥0.31kg O2/h | ≥0.42kg O2/h | ≥0.75kg O2/h | |
| SAE | ≥7.5kg O2/kw.h | ≥8.9kg O2/kw.h | ≥8.9kg O2/kw.h | ≥8.9kg O2/kw.h | |
| Headloss | 2000-3000Pa | 2000-4500Pa | 2000-4300Pa | 2000-4200Pa | |
| Service Area | 0.5-0.8m2 | 0.2-0.64m2 | 0.25-1.0m2 | 0.4-1.5m2 | |
| Service Life | >5year | >5year | >5year | >5year |
