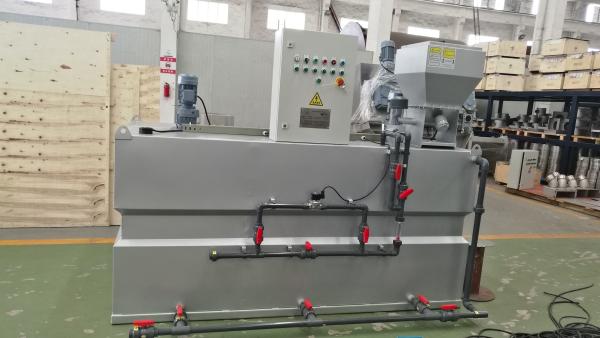

Polymer Chemical Auto Dosing System In Water Treatment Plant SS304 Stainless Steel

Ask Lasest Price
Brand Name :	HOLLY
Model Number :	HLJY
Certification :	CE, ISO9001
Price :	USD 6000-90000 Per Set
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	10 Sets Per month
Delivery Time :	15 working days

Add to Cart

Product Details
Company Profile

Polymer Chemical Auto Dosing System In Water Treatment Plant SS304 Stainless Steel

Automatic Polymer Dose Machine Dosing System Water Treatment Equipment

Introduction

The function of Ryde Polymer Dosing System is to make the flocculants of powder or liquid

dissolve or dilute into flocculants solution.

Model selection: volume of Polymer Dosing System=absolute dry capacity of sludge in set

time of dewatering machine x adding rate of flocculants x dissolving times of flocculants x

continuous operation time.

Main Features of Automatic chemical dosing system for water treatment

coagulants

♦ Continuously working with 3-tank integration design (mixing tank, aging tank, storage tank),

easy to operate and maintain, low total cost of ownership (HYJY 3 Only)

♦ HYJY1 can be extended as a more automatic 2 storage tank type in accordance with the

actual needs

♦ With powdered or liquid state (optional) dual feed design to meet different needs.

Proportional allocation function makes it possible to prepare liquid concentration by

requirements

♦ With uniform and moderate concentration to reduce the agglomeration causing by the

improper manual allocation. Blocking of pipe or pump, unnecessary maintenance costs and

powder expenses could be well avoided

Applications:

Pulp and paper

Food Processing

Chemical Processing

Textiles

Municipal

Algae Removal

Bakery Waste

Fiber Recovery

Paint Waste

Poultry Processing

Slaughter House Sewage

Specifications:

Solution Preparation Amount Q(L/h)		500	1000	1500	2000	3000	4000
Dimension(BLH)		90015001650	100016251750	100024401800	122024401800	122032002000	145032002000
Powder Conveyor Power N(KW)		0.37	0.37	0.37	0.37	0.37	0.37
Agitator	Paddle Diaφ(mm)	200	200	300	300	400	400
	Spindle speed n(r/min)	120	120	120	120	120	120
	Power N(KW)	0.2*2	0.2*2	0.37*2	0.37*2	0.37*2	0.37*2
Dosing Screw Pump	Flow N(KW)	0.5	1	2	2	3	4
	Lift(m)	10	10	15	15	15	15
	Power N (KW)	0.75	0.75	1.1	1.1	2.2	2.2
Inlet pipe Dia DN1(mm)		25	25	32	32	50	50
Outlet Pipe Dia DN2(mm)		25	25	25	25	40	40
