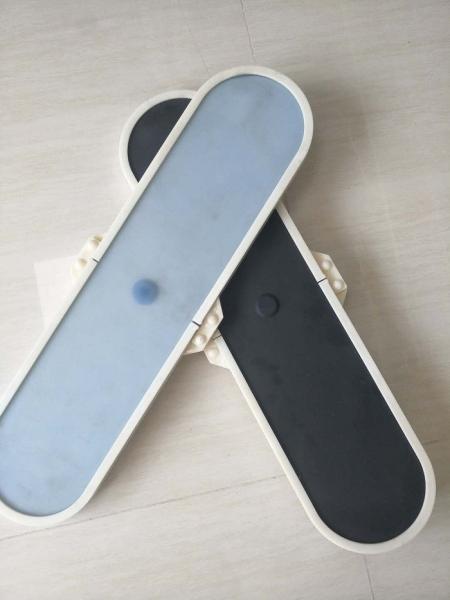

Municipal Sewage Treatment EPDM Fine Bubble Plate Aerator
Installation:for Membrane disc aerator for wastewater treatment
1.fix the regulator in the down of the ponds via expansion bolts
2.Install the gas pipeline into the regulator by using hoop,then
adjust
3.To prevent the aeration equipment,should install the system after
building works
finished,then pour water into ponds.
4.To avoid leak between the pipeline and connection parts,should
test the system by water in
advance(water should be 10cm exceed the diffuser),then ventilate
the system.
Features
• Ideal for air-on/air-off applications such as SBRs, aerobic
digesters, and anoxic swing zones,
as well as continuous operation
• Over 22 million diffusers installed in municipal and industrial
applications worldwide
• Advanced membrane perforation technique creates extremely fine,
uniform bubble pattern
for optimal oxygen transfer
• Low maintenance and long service life of more than 5 years
• Using imported raw material
Advantages
1.Replacement of other diffuser brands of any membrane and size.
2.Easy equipping or retrofitting any types and dimensions of
piping.
3.High quality material to insure long service lift up to 10years
in proper opearation.
4.Space and energy saving to cut down human and operation cost.
5.Quickly to outdated and less efficient technologies.
Wastewater Treatment Application and Rubber+plastic+ABS Material
rubber air diffuser
aerators manufacturer
Technical Parameters
| Model | HLBQ650 | HLBQ1100 |
| Membrane Material | EPDM/Silicon | EPDM/Silicon |
| Membrane thickness | 1.8-2.0mm | 1.8-2.0mm |
| Bubble Diameter | 0.8-1.9mm | 0.8-1.9mm |
| Standard Airflow | 6m3/h | 10m3/h |
| Aeration Range | 1-16m3/h | 4-32m3/h |
| Resistance Loss | 2.0-4.3kPa | 2.0-4.3kPa |
Standard Oxygen Transfer Effficiency (6m water depth) | ≥40% | ≥40% |
| Standard Oxygenation capacity | ≥0.99kg O2/h | ≥1.82kg O2/h |
| Oxygenation Effficiency | ≥9.2kg O2/kw·h | ≥9.2kg O2/kw·h |
| Effective Service Area | 0.5-2.5m2 | 1.0-4.0m2
|
