    63mm 93mm Ceramic Plate Aeratorc For Aeration Basin Wastewater Treatment

    Ask Lasest Price
    Brand Name : HOLLY
    Model Number : HLBQ
    Certification : ISO9001,CE
    Price : USD13-20 PCS
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10000PCS per month
    Delivery Time : According to the order quantity
    • Product Details
    • Company Profile

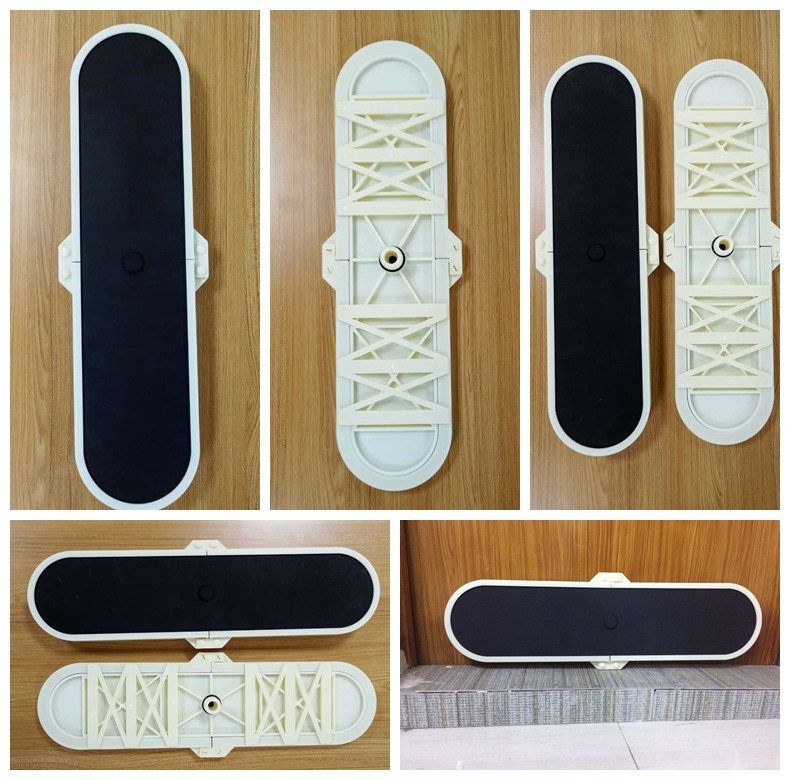

    63mm 93mm Ceramic Plate Aeratorc For Aeration Basin Wastewater Treatment

    High Quality Plate Type Air Diffuser Ceramic Aerator For Water Treatment


    Introduction


    Fine bubble aeration is an efficient way to transfer oxygen to a water body. A compressor on


    shore pumps air through a hose, which is connected to an underwater aeration unit. Attached


    to the unit are a number of diffusers. These diffusers come in the shape of discs, plates, tubes


    or hoses constructed from glass-bonded silica, porous ceramic plastic, PVC or perforated


    membranes made from EPDM (ethylene propylene diene Monomer) rubber Air pumped


    through the diffuser membranes is released into the water. These bubbles are known as fine


    bubbles.


    Features


    ♦ Low resistance loss

    ♦ Highly Tear Resistant

    ♦ Anti-clogging, anti-backflow

    ♦ Ageing-resistant, anti-corrosion

    ♦ High efficiency, energy-saving


    Our Service

    1. Qaulity level including packing standard is the best and most stable.


    2. Best raw material and other accessaries for membrane disc diffuser.


    3. All enquiries and questions will be replied within 24 hours.


    4. All claims to be settled down within 24 hours.


    5. The best payment conditions.


    Technical Parameters


    ModelHLBQ650HLBQ1100
    Membrane MaterialEPDM/SiliconEPDM/Silicon
    Membrane thickness1.8-2.0mm1.8-2.0mm
    Bubble Diameter0.8-1.9mm0.8-1.9mm
    Standard Airflow6m3/h10m3/h
    Aeration Range1-16m3/h4-32m3/h
    Resistance Loss2.0-4.3kPa2.0-4.3kPa

    Standard Oxygen Transfer Effficiency

    (6m water depth)

    ≥40%≥40%
    Standard Oxygenation capacity≥0.99kg O2/h≥1.82kg O2/h
    Oxygenation Effficiency≥9.2kg O2/kw·h≥9.2kg O2/kw·h
    Effective Service Area0.5-2.5m21.0-4.0m2


    Quality 63mm 93mm Ceramic Plate Aeratorc For Aeration Basin Wastewater Treatment for sale
