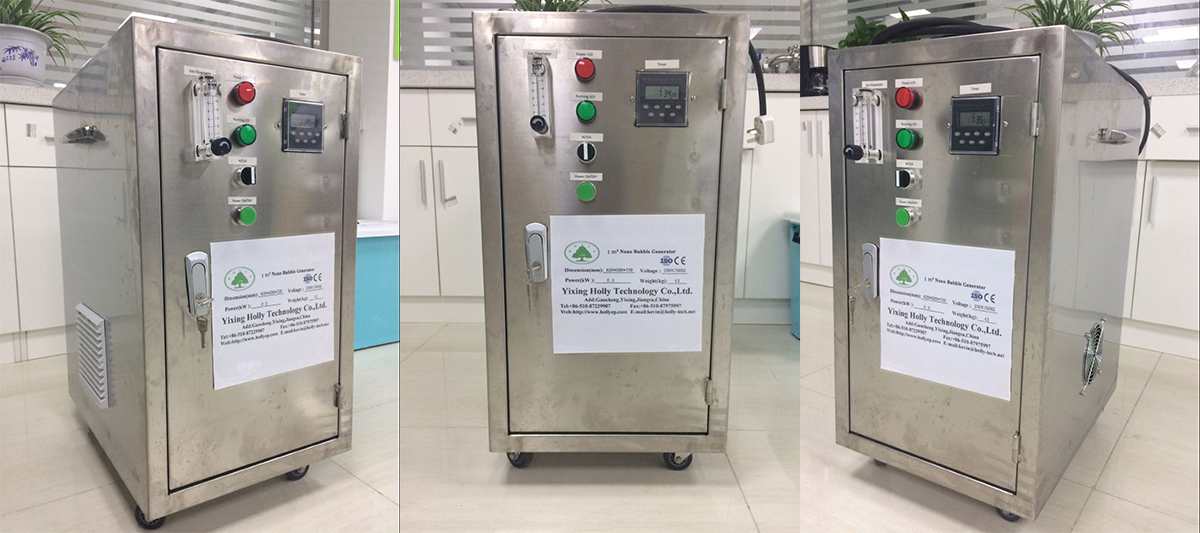

Oxygen Micro Nano Bubble Generator For Waste Water Treatment
Introduction
Dissolved Oxygen Micro Nano Bubble Generator For Aquaculture Water
Treatment is a new
generation of high efficiency and energy saving water treatment
technology, its application
range is particularly wide (25) industry, has huge development
potential, as the functional
properties of bubble, bubble with anion, speed slow, ozone bubble
explosion equivalent can
have antiseptic effect, gradually become smaller bubbles... etc.)
familiar, and mature
technology and development, will continue to expand its use range,
market growth will
follow.Our nano bubble generator can replace the current domestic
high-pressure
decompression dissolved foaming of fine bubbles, and part of the
aeration equipment.
Advantage
1. Using high-pressure rotary flow transient release
technology,high density of micro nano
bubble,non-clogging,easy to maintain.
2. Functional bubble diameter of 200 nm ~ 50μm , saturated water
can be quickly produced
with good gas-liquid dissolving effect.
3. Stable performance, high efficiency, low noise.
4. Wide range of application,such as : waste water /gas treatment
aquaculture,agricultural
irrigation,bath and so on.
Technical Parameters
| HLYZ-001 | HLYZ-002 | HLYZ-006 | HLYZ-012 |
| Water Inflow(m3/h) | 1 | 2 | 6 | 12 |
| Voltage(V) | 220/380 | 220/380 | 380 | 380 |
| Power(KW) | 0.5 | 1.1 | 3 | 6 |
| Size(mm) | 660*530*800 | 660*530*800 | 850*550*850 | 860*560*850 |
| Working Environment(ºC) | 0-100ºC | 0-100ºC | 0-100ºC | 0-100ºC |
| Working Capacity( cubic water) | 90 | 300 | 1200 | 2200 |
| Bubble Diameter(nm-μm) | 80nm-20μm | 80nm-20μm | 80nm-20μm | 80nm-20μm |
| Gas-liquid Mixing Proportion | 1:8-1:12 | 1:8-1:12 | 1:8-1:12 | 1:8-1:12 |
| Gas-liquid Dissolving Rate | >95% | >95% | >95% | >95% |
