    Disc Type Micro Fine Bubble Membrane Diffusers For Municipal Sewage Wastewater Treatment

    Ask Lasest Price
    Brand Name : HOLLY
    Model Number : HLBQ
    Certification : CE Certificate, IOS 9001
    Price : USD 3-8.5 per pcs
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10000pcs per month
    Delivery Time : 20 working days
    • Product Details
    • Company Profile

    Disc Type Micro Fine Bubble Membrane Diffusers For Municipal Sewage Wastewater Treatment

    Disc Micro Bubble Diffuser With High Quality For Municipal Sewage


    Features:

    1. High Oxygen Transmission Efficiency (OTE)

    The pores on the EPDM membrane are almost 100% even, tinyair bubbles of 1-3mm are


    formed (the air bubbles are petty and even with good flow velocity and fluid condition), and the


    contact area with the sewage water is increased, so the oxygen transmission efficiency is


    high. Under the best ventilation capacity, the average oxygen transmission efficiency for every


    meter of water depth is up to more than 6%.


    2. Good effect on saving in power, and low operating cost

    Because of the high oxygen transmission efficiency, low powered blower can satisfy the


    oxygen volume required by aeration process. As a result, power is saved, operating cost is


    decreased, and the cost is reduced.


    3. Excellent counterflow prevention function

    The back stops are all equipped with valves to avoid counterflow when the air transmission is


    broken off, enabling the pores to shut smoothly and applicable to intermittent operation. Its


    unique and even air vents can lead the airflow effectively, and can prevent sewage water from


    flowing into the aerator pipeline effectively.


    Product Description

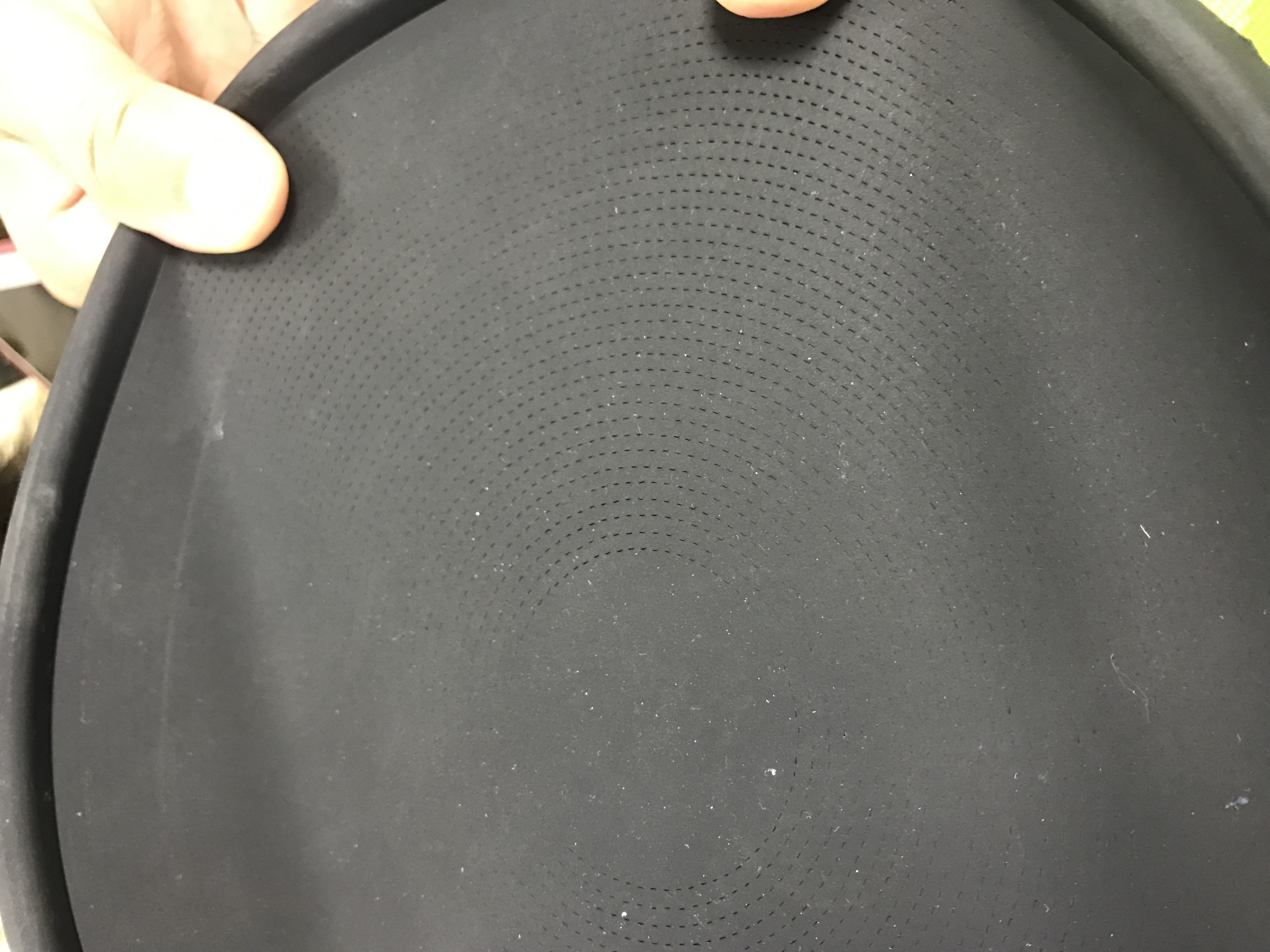

    The reinforced EPDM can continuously create fine bubble from slots on the EPDM membrane


    of disc type or tube type diffuser. The expected duty life may be over 5 years without tearing


    or bursting. There are other material selections of self-sink silicon rubber membrane, ceramic


    diffuser, air stone, and coil looking diffuser. There are also course bubble air diffuser for


    application of liquid mixture. The diffuser can be used for roots blower, ring blower and linear


    air pump. The diffuser also has advantage of much energy reduction.


    Finds Application In :


    1. Aeration for SBR reaction basin, contact oxidation pond, and activated sludge aeration


    basin in sewage disposal plant;


    2. Aeration for denitrification / dephosphorization aerobic processes;

    3. Aeration for excreta and animal wastewater treatment plant;

    4. Aeration of deep aeration basin;

    5. Aeration for high concentration wastewater aeration basin, and aeration for regulating pond


    of wastewater treatment plant;

    6. Aeration of fishpond and other applications.


    Technical Parameters


    ModelHLBQ170HLBQ215HLBQ260HLBQ350
    Bubble TypeCoarse bubbleFine bubbleFine bubbleFine bubble
    Size6 inch8 inch9 inch12 inch
    MOCEPDM/Silicon membrane
    ABS/PP carrier plate
    EPDM/Silicon membrane
    ABS/PP carrier plate
    EPDM/Silicon membrane
    ABS/PP carrier plate
    EPDM/Silicon membrane
    ABS/PP carrier plate
    Connector3/4'' NPT male thread3/4'' NPT male thread3/4'' NPT male thread3/4'' NPT male thread
    Bubble Size4-5mm1-2mm1-2mm1-2mm
    Design Flow1-5m3/h1.5-2.5m3/h3-4m3/h5-6m3/h
    Flow Range6-9m3/h1-6m3/h1-8m3/h1-12m3/h
    SOTE≥10%(6m submerged)≥38%(6m submerged)≥38%(6m submerged)≥38%(6m submerged)
    SOTR≥0.21kg O2/h≥0.31kg O2/h≥0.42kg O2/h≥0.75kg O2/h
    SAE≥7.5kg O2/kw.h≥8.9kg O2/kw.h≥8.9kg O2/kw.h≥8.9kg O2/kw.h
    Headloss2000-3000Pa2000-4500Pa2000-4300Pa2000-4200Pa
    Service Area0.5-0.8m20.2-0.64m20.25-1.0m20.4-1.5m2
    Service Life>5year>5year>5year>5year
